| Model | Length (CM) | Recommended Mounting Back From Center(CM) | Mounting Distance From Tail | Mounting Drill Bit Size | Weight |
|---|

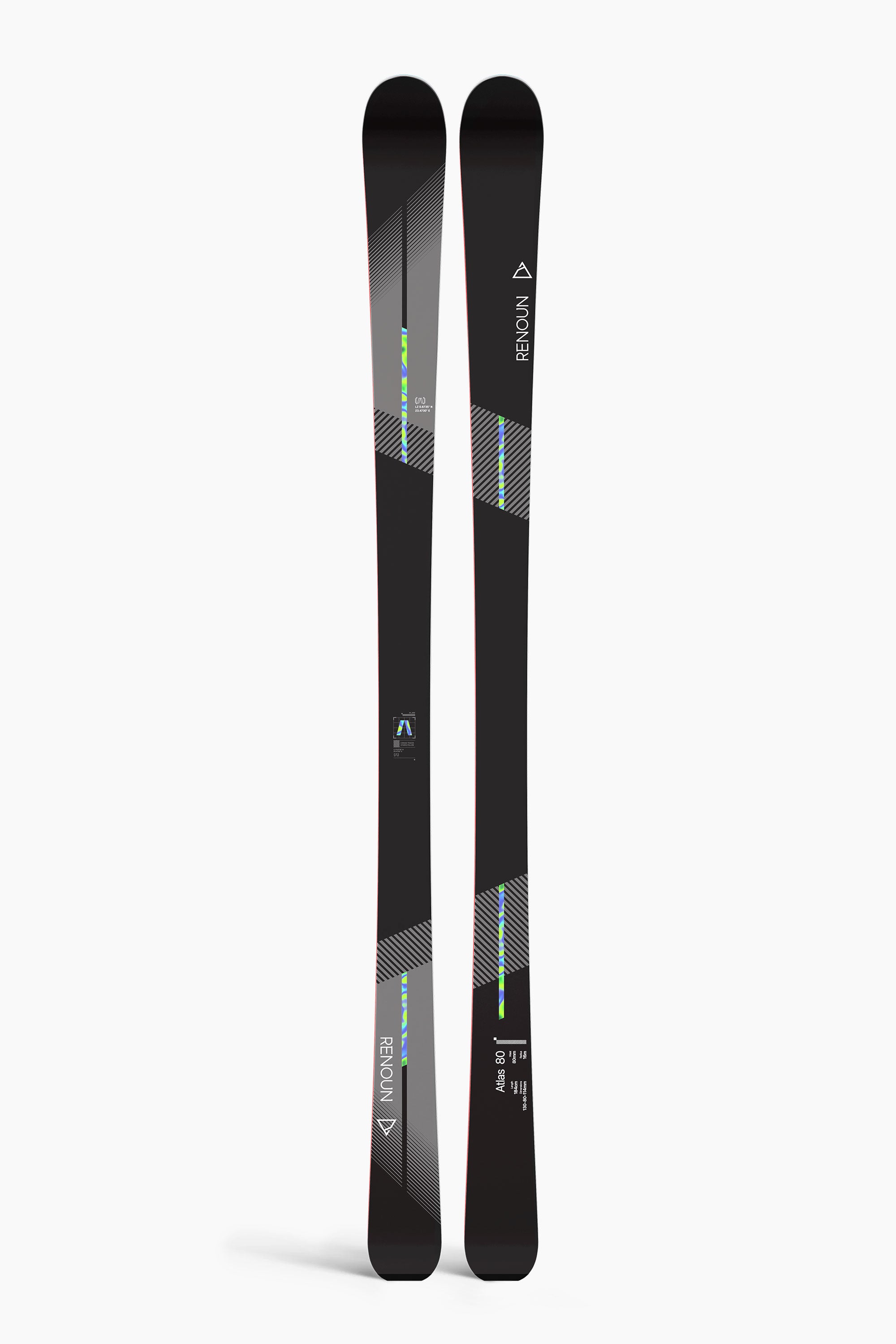

Atlas 80
|
163 | -6.3 | 74.2 | 3.6x9.5mm tapped | 1,621 g/ski |
| 170 | -6.5 | 77.5 | 3.6x9.5mm tapped | 1,708 g/ski | |
| 177 | -6.8 | 80.7 | 3.6x9.5mm tapped | 1,804 g/ski | |
| 184 | -7.1 | 83.9 | 3.6x9.5mm tapped | 1,919 g/ski | |
Construction type2 Sheets Titanal, Carbon fiber & tri-axial fiberglass WoodcoreMaple with VibeStop™ Inlays Edge bevel1 degree base,1 degree side |
Earhart 88
|
149 | -8.4 | 65.1 | 3.6x9.0mm tapped | 1,196 g/ski |
| 156 | -8.8 | 68.2 | 3.6x9.0mm tapped | 1,262 g/ski | |
| 163 | -9.2 | 71.3 | 3.6x9.5mm tapped | 1,400 g/ski | |
| 170 | -9.6 | 74.4 | 3.6x9.5mm tapped | 1,440 g/ski | |
| 177 | -10 | 77.5 | 3.6x9.5mm tapped | 1,671 g/ski | |
Construction typeTriax Fiberglass & Titanal Binding Retention Plate WoodcoreMaple with VibeStop™ Inlays Edge bevel1 degree base,1 degree side |
Endurance 88
|
163 | -9.2 | 71.3 | 3.6x9.5mm tapped | 1,479 g/ski |
| 170 | -9.6 | 74.4 | 3.6x9.5mm tapped | 1,600 g/ski | |
| 177 | -10 | 77.5 | 3.6x9.5mm tapped | 1,671 g/ski | |
| 184 | -10.4 | 80.6 | 3.6x9.5mm tapped | 1,749 g/ski | |
Construction type2 Full Sheets Titanal WoodcoreMaple with VibeStop™ Inlays Edge bevel1 degree base 1 degree side |
Endurance 98
|
163 | -9.3 | 72.20 | 3.6x9.5mm tapped | 1,590 g/ski |
| 170 | -9.7 | 75.30 | 3.6x9.5mm tapped | 1,702 g/ski | |
| 177 | -10.1 | 78.40 | 3.6x9.5mm tapped | 1,823 g/ski | |
| 184 | -10.6 | 81.40 | 3.6x9.5mm tapped | 1,915 g/ski | |
Construction type2 Partial Sheets Titanal WoodcoreAspen with VibeStop™ Inlays Edge bevel1 degree base 1 degree side |

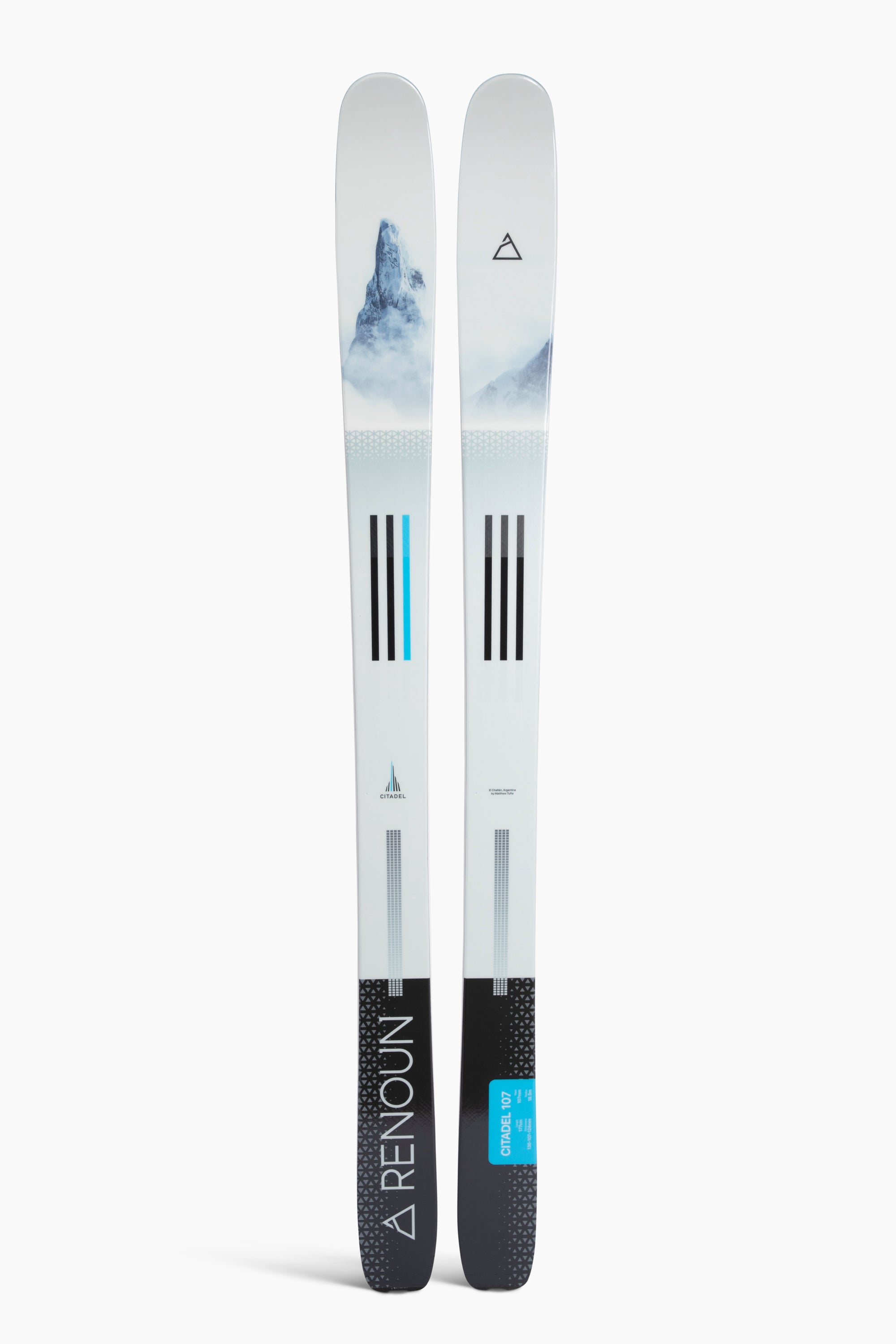

Citadel 106
|
169 | -6.8 | 77.7 | 3.6x9.5mm tapped | 1,579 g/ski |
| 178 | -7.9 | 81.1 | 3.6x9.5mm tapped | 1,635 g/ski | |
| 184 | -7.6 | 84.4 | 3.6x9.5mm tapped | 1,717 g/ski | |
| 191 | -8.6 | 86.9 | 3.6x9.5mm tapped | 1,818 g/ski | |
Construction typeFull Carbon & Titanal Binding Retention Plate WoodcoreAspen with VibeStop™ Inlays Edge bevel1 degree base 1 degree side |
Atlas 80 |
||||
| Length (CM) | Mounting Back From Center (CM) | Mounting Distance From Tail | Mounting Drill Bit Size | Weight |
| 163 | -6.3 | 74.2 | 3.6x9.5mm tapped | 1,621 g/ski |
| 170 | -6.5 | 77.5 | 3.6x9.5mm tapped | 1,708 g/ski |
| 177 | -6.8 | 80.7 | 3.6x9.5mm tapped | 1,804 g/ski |
| 184 | -7.1 | 83.9 | 3.6x9.5mm tapped | 1,919 g/ski |
|
Construction type
2 Sheets Titanal, Carbon fiber & tri-axial fiberglass WoodcoreMaple with VibeStop™ Inlays Edge bevel1 degree base,1 degree side |
||||
Earhart 88 |
||||
| Length (CM) | Mounting Back From Center (CM) | Mounting Distance From Tail | Mounting Drill Bit Size | Weight |
| 149 | -8.4 | 65.1 | 3.6x9.0mm tapped | 1,196 g/ski |
| 156 | -8.8 | 68.2 | 3.6x9.0mm tapped | 1,262 g/ski |
| 163 | -9.2 | 71.3 | 3.6x9.5mm tapped | 1,400 g/ski |
| 170 | -9.6 | 74.4 | 3.6x9.5mm tapped | 1,440 g/ski |
| 177 | -10 | 77.5 | 3.6x9.5mm tapped | 1,671 g/ski |
|
Construction type
Triax Fiberglass & Titanal Binding Retention Plate WoodcoreMaple with VibeStop™ Inlays Edge bevel1 degree base,1 degree side |
||||
Endurance 88 |
||||
| Length (CM) | Mounting Back From Center (CM) | Mounting Distance From Tail | Mounting Drill Bit Size | Weight |
| 163 | -9.2 | 71.3 | 3.6x9.5mm tapped | 1,479 g/ski |
| 170 | -9.6 | 74.4 | 3.6x9.5mm tapped | 1,600 g/ski |
| 177 | -10 | 77.5 | 3.6x9.5mm tapped | 1,671 g/ski |
| 184 | -10.4 | 80.6 | 3.6x9.5mm tapped | 1,749 g/ski |
|
Construction type
2 Full Sheets Titanal WoodcoreMaple with VibeStop™ Inlays Edge bevel1 degree base 1 degree side |
||||
Endurance 98 |
||||
| Length (CM) | Mounting Back From Center (CM) | Mounting Distance From Tail | Mounting Drill Bit Size | Weight |
| 163 | -9.3 | 72.20 | 3.6x9.5mm tapped | 1,590 g/ski |
| 170 | -9.7 | 75.30 | 3.6x9.5mm tapped | 1,702 g/ski |
| 177 | -10.1 | 78.40 | 3.6x9.5mm tapped | 1,823 g/ski |
| 184 | -10.6 | 81.40 | 3.6x9.5mm tapped | 1,915 g/ski |
|
Construction type
2 Partial Sheets Titanal WoodcoreAspen with VibeStop™ Inlays Edge bevel1 degree base 1 degree side |
||||
Citadel 106 |
||||
| Length (CM) | Mounting Back From Center (CM) | Mounting Distance From Tail | Mounting Drill Bit Size | Weight |
| 169 | -6.8 | 77.7 | 3.6x9.5mm tapped | 1,579 g/ski |
| 178 | -7.9 | 81.1 | 3.6x9.5mm tapped | 1,635 g/ski |
| 184 | -7.6 | 84.4 | 3.6x9.5mm tapped | 1,717 g/ski |
| 191 | -8.6 | 86.9 | 3.6x9.5mm tapped | 1,818 g/ski |
|
Construction type
Full Carbon & Titanal Binding Retention Plate WoodcoreAspen with VibeStop™ Inlays Edge bevel1 degree base 1 degree side |
||||
